Concrete payload
Nominal drum volume is not the same as legal payload. Buyers should provide the expected concrete density and confirm the completed truck's axle loads, gross weight and local road limits.
Home / SHACMAN Concrete Mixer Truck
SHACMAN Concrete Mixer Truck for Export
Compare SHACMAN mixer truck chassis and body requirements around the real work cycle, not drum volume alone. This page uses a verified F3000 6x4 10m3 source configuration to show buyers what must be confirmed before an export quotation.
Request Mixer Truck QuoteWhatsApp Andy

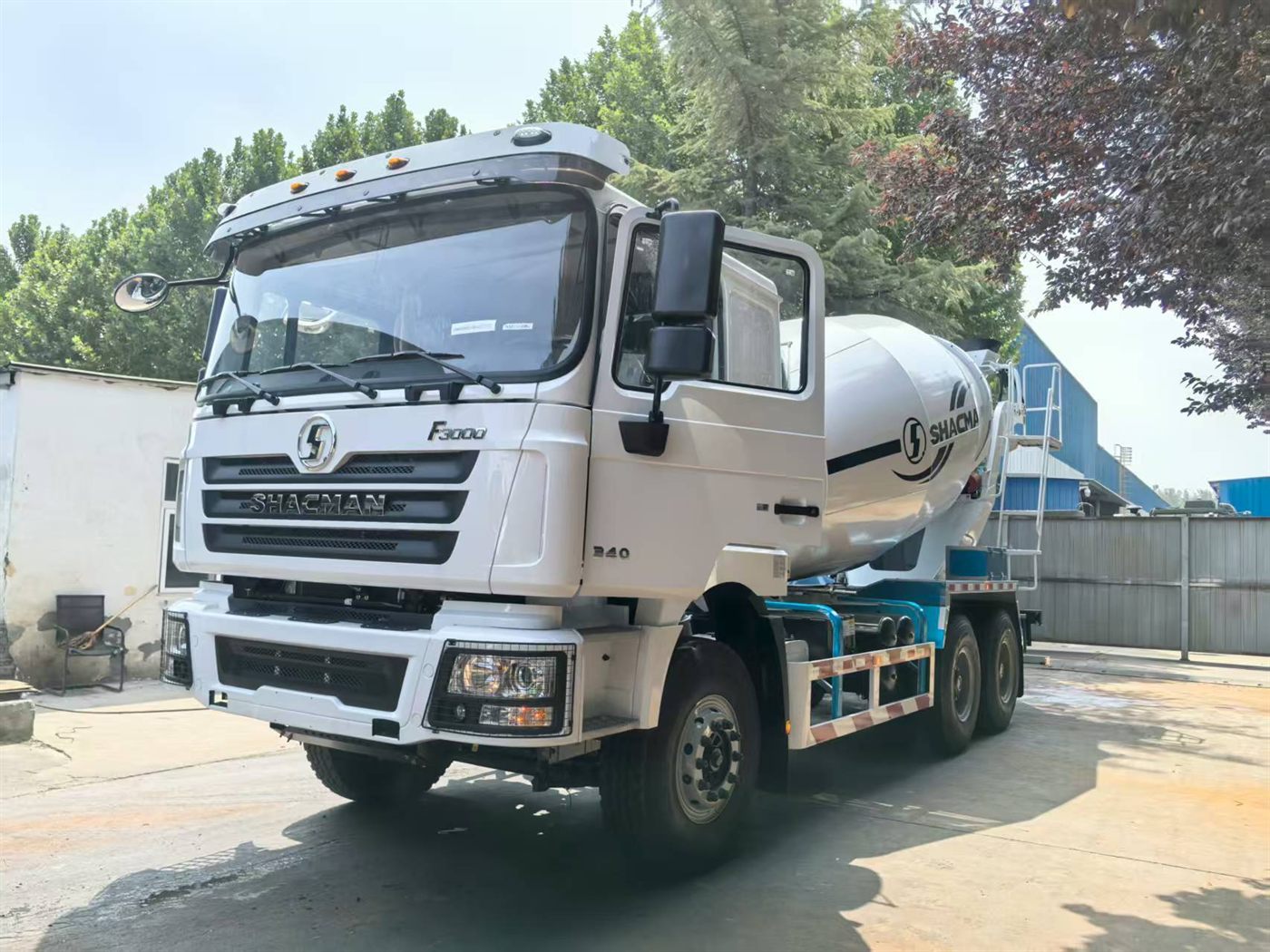

Verified F3000 6x4 10m3 reference configuration
The following technical data comes from the supplied configuration document for model SX5255GJBJT384. It is a reference for configuration discussions, not a universal specification for every market.
| Item | Verified reference specification | Buyer check |
|---|---|---|
| Drive and steering | 6x4, left-hand drive | Confirm steering side and registration requirements for the destination. |
| Wheelbase | 3775 + 1400 mm | Check turning space, jobsite access and complete-vehicle dimensions. |
| Maximum speed | 80 km/h | Confirm suitability for the planned delivery route and local requirements. |
| Engine | WEICHAI WP10.380E22 with PTO, 380 HP, 9.726 L, Euro II | Engine and emission availability must match the destination and fuel conditions. |
| Transmission | FAST 12JSD200T-B | Review grades, start frequency and loaded route conditions. |
| Axles | HANDE 9.5T front; HANDE 16T double-reduction rear axle, ratio 5.92 | Check complete-vehicle weight, legal axle limits and operating terrain. |
| Tyres | 315/80R22.5, 10 + 1 | Confirm availability and suitability for road and site surfaces. |
| Fuel tank | 400 L aluminium alloy | Compare route length, refuelling access and permitted vehicle layout. |
| Mixer body | 10 cubic metres in the source configuration | Confirm nominal volume, concrete density, legal payload and body supplier specification. |
Source boundary: chassis and mixer-body data above is transcribed from the user-provided F3000 6x4 configuration document. Public price, payment terms and delivery timing are intentionally excluded. The signed technical sheet controls the final vehicle.
Why mixer capacity cannot be selected by drum size alone
Delivery cycle
Batching plant distance, traffic, steep grades, waiting time and discharge frequency affect drivetrain selection, cooling demand and the number of trucks required for a project.
Site access
Turning space, entrance width, overhead clearance, ground condition and discharge position can determine whether a 6x4 or 8x4 layout is practical.
Match the chassis to the ready-mix route
A concrete mixer truck spends its working life carrying a shifting load, stopping frequently and operating both on public roads and uneven project sites. The chassis, PTO arrangement, transmission, axle ratio, tyres and braking system must therefore be reviewed as one system.
For flat urban delivery, buyers may prioritize manoeuvrability and predictable road speed. A remote construction project may instead require attention to approach roads, long grades, soft ground, high ambient temperature and limited service access. Altitude and fuel quality should also be included in the RFQ when they are relevant. Final engine, emission and drivetrain availability depends on the destination and production configuration.
route distancemaximum graderoad surfaceambient temperaturealtitudedaily cycles
Mixer body details to confirm before quotation
Drum and mixing system
Confirm nominal drum capacity, geometric volume, mixing and discharge performance, blade design and the body supplier's technical specification for the selected chassis.
Hydraulic components
Ask for the proposed hydraulic pump, motor and reducer brands or models when these details matter to maintenance planning. Do not assume one reference combination applies to every truck.
Water and discharge
Confirm water tank capacity, filling arrangement, chute layout, extension chutes, control positions and any cleaning requirements around the buyer's batching and jobsite process.
RFQ checklist for a SHACMAN mixer truck
Providing the information below helps Andy compare an available configuration with the actual duty cycle and reduces repeated clarification during procurement.
- Destination country and delivery port
- Required quantity and preferred SHACMAN series
- 6x4 or 8x4 preference, if already decided
- Required nominal mixer capacity
- Concrete density or project mix information
- Batching plant to jobsite distance
- Daily trips and expected operating hours
- Steepest sustained road grade
- Paved, gravel and site-road percentages
- Altitude and temperature range
- Steering side and emission requirement
- Preferred hydraulic and discharge components
- Inspection, loading-photo and spare-parts needs
When a requirement is not yet fixed, describe the project and ask for a configuration proposal. The final specification should still be reviewed line by line before quotation and order confirmation.
6x4 or 8x4 concrete mixer truck?
| Decision factor | 6x4 discussion | 8x4 discussion |
|---|---|---|
| Access and turning | Often considered where site access and manoeuvrability are important. | Check total length, turning space and access before choosing a larger layout. |
| Capacity and axle loading | Match body capacity to the completed vehicle's legal weight and axle distribution. | Additional axle capacity does not replace destination-market weight checks. |
| Project route | For both layouts, provide grades, distance, road surface, concrete density and daily cycles. Configuration should follow the duty cycle rather than a generic model label. | |
Related SHACMAN mixer truck buying guides
Benin ready-mix procurement
Questions around delivery distance, drum selection, road conditions and discharge planning for a West African construction project.
Read the Benin guideGabon construction projects
A separate application guide for selecting a mixer truck around jobsite access, rainfall, route and service planning.
Read the Gabon guideF3000 model overview
Review the broader F3000 product family before deciding which chassis should support the mixer body.
View SHACMAN F3000SHACMAN mixer truck FAQs
What is the capacity of the verified F3000 6x4 reference configuration?
The supplied configuration specifies a 10 cubic metre mixer body. Final body capacity and the complete-vehicle specification must be confirmed for each order and destination.
What information is needed for a SHACMAN mixer truck quotation?
Provide the destination country and port, required mixer capacity, quantity, concrete delivery distance, road grades, emission requirement, steering position and any preferred hydraulic or discharge components.
Can the F3000 reference specification be changed?
Available chassis, engine, transmission, axle, tyre, mixer body and emission configurations depend on the destination and project requirements. The final technical sheet must be confirmed before quotation.
Can inspection and loading photos be provided?
Inspection coordination and vehicle, loading and shipping photo updates can be discussed as part of the export order process.
Request a configuration-based mixer truck quotation
Send the destination, drum capacity, quantity, route distance, road grade and emission requirement.
