SHACMAN X3000 6x6 Sewage Suction Truck with 20 m3 Tank

What this X3000 6x6 sewage suction truck is designed to do

This vehicle combines an all-wheel-drive X3000 chassis with a high-volume vacuum sewage tank. It can be considered for municipal drainage maintenance, septic-tank emptying, construction-site wastewater collection, industrial sludge transfer and service work where access roads may be unpaved or uneven. The 6x6 layout is relevant when the truck must travel beyond normal paved streets, but buyers should still describe gradients, soil condition, turning space and the distance between the collection point and discharge point.

A sewage suction truck is not selected by tank volume alone. The liquid-to-solids ratio, material viscosity, suction depth, horizontal hose distance, discharge method and daily work cycle directly affect the practical configuration. These details should be confirmed before the pump, hose and operating accessories are approved.

Sewage suction truck or combined sewer jetting truck?

This reference vehicle is a vacuum sewage suction truck, also searched as a vacuum sewage truck, septic tank truck or vacuum tanker truck. Its confirmed task is collecting and transporting sewage, septic waste or compatible sludge through a vacuum system. The supplied configuration does not list a high-pressure water pump, hose reel or separate clean-water compartment, so it should not be described as a combined sewer jetting and suction truck.

If a project requires pipe flushing before suction, state that requirement in the RFQ. A combined cleaning-and-suction upper body changes the water and sewage compartment design, pump system, piping, payload distribution and operating controls. Those items must be engineered and quoted separately.

Verified reference specification

The table reproduces the supplied configuration. Final drawings, completed-vehicle mass, payload, destination compliance and any requested option must be reconfirmed in the sales contract. The source sheet contains inconsistent Chinese and English delivery-period figures, so no delivery promise is stated here.

What is confirmed and what still needs approval

Confirmed by the supplied specification: chassis model, 6x6 drive, left-hand steering, wheelbase, engine, transmission, axles, tires, nominal tank volume, steel thickness, double vacuum oil pumps, overflow valve, sight glass, hydraulic rear cover, rear outlet and suction-hose length.

Confirm before production: maximum suction depth, pump airflow and filling time, medium compatibility, internal anti-corrosion treatment, completed-vehicle dimensions and mass, legal payload, discharge fittings, optional cleaning equipment, destination compliance and final inspection standard. Nominal tank volume is not the same as legal payload.

Why the tank and suction system must be evaluated together

The 20 m3 tank provides the nominal collection volume stated in the configuration, while the 6 mm tank body and 8 mm end caps describe the specified steel construction. Operational suitability depends on more than those numbers. A buyer collecting thin wastewater has a different duty from a fleet handling dense sludge, sand or fibrous material. Before quotation, describe what will enter the tank and whether the truck will discharge by gravity, through the rear outlet or by another required method.

The double vacuum oil pumps, overflow valve and sight glass are important parts of the reference system. The overflow device helps protect the vacuum circuit from overfilling, while the sight glass supports level observation during operation. Pump performance figures are not stated in the supplied document, so required suction depth, horizontal distance and filling-time expectations must be discussed and confirmed rather than assumed.

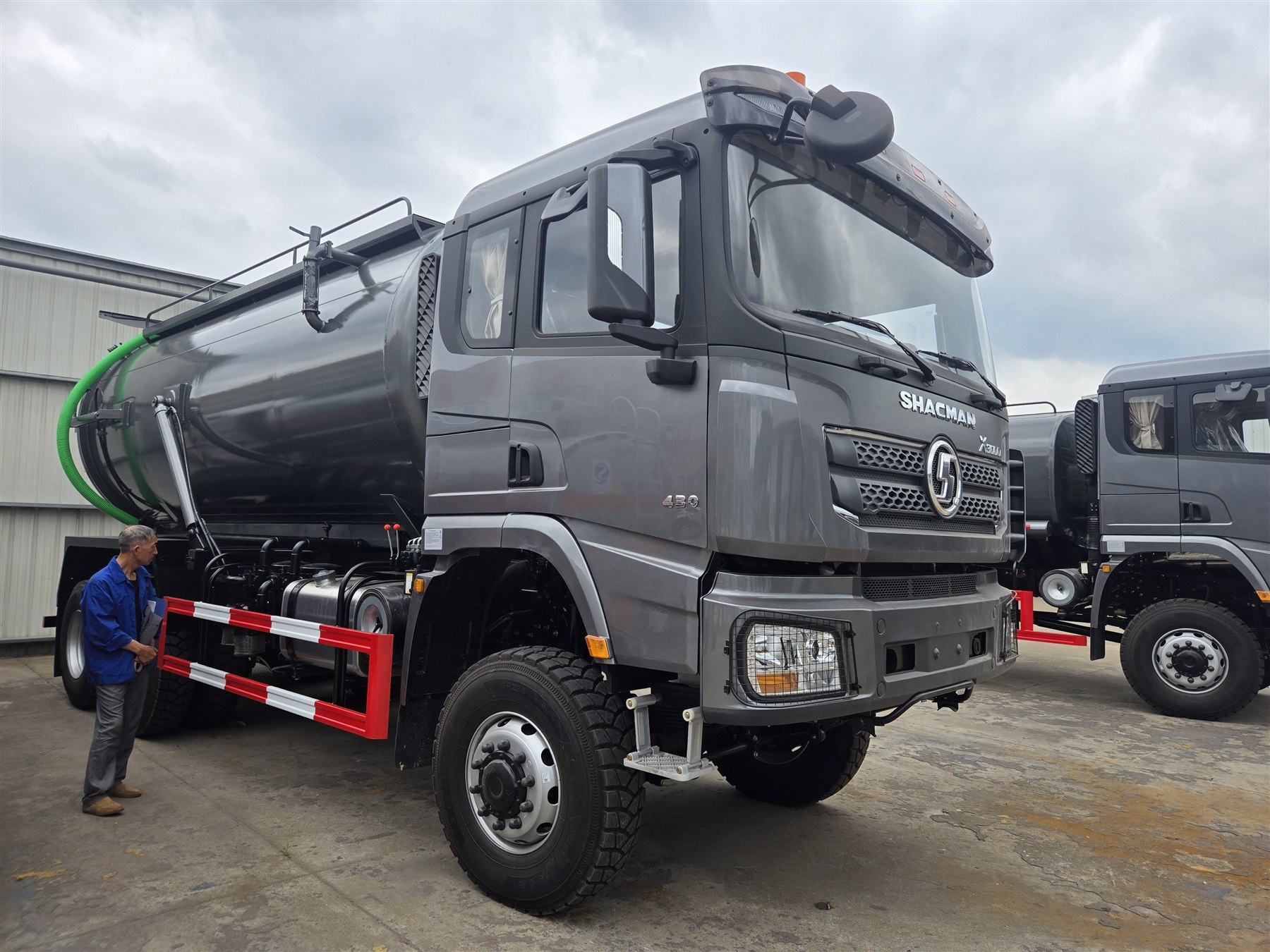

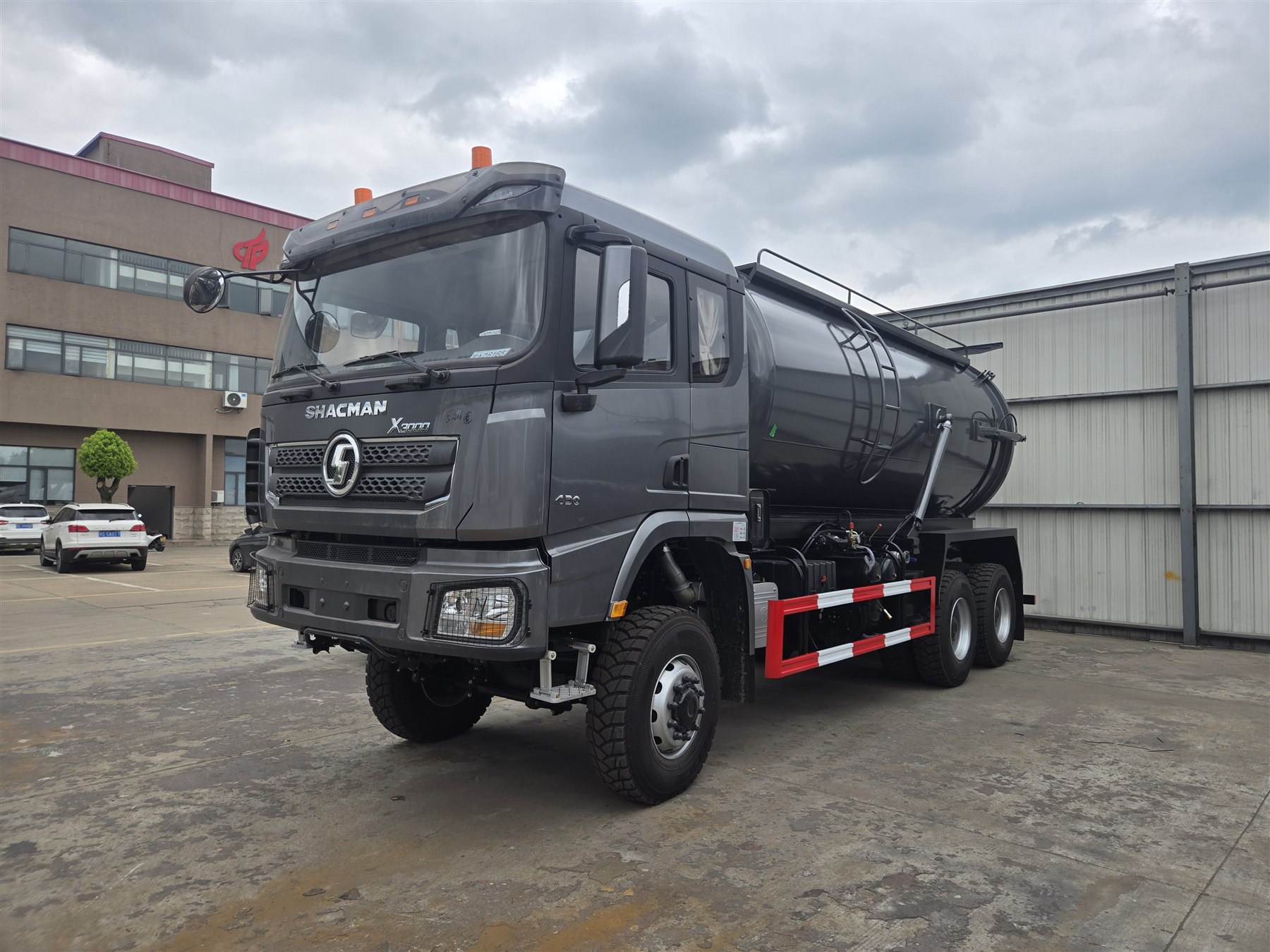

Real vehicle view: X3000 cab, 6x6 chassis and cylindrical vacuum sewage tank. / 实车展示：X3000 驾驶室、6x6 底盘及圆柱形真空吸污罐。

Chassis matching for rough access and a full tank

A full vacuum tank places a demanding load on the completed vehicle. Chassis capacity, axle loading, center of gravity, tank mounting and local legal limits must be checked as one system. The reference chassis uses a 6x6 driveline, 9.5 t front axle, 16 t dual-stage rear axles and front/rear multi-leaf springs. This configuration is intended to support demanding work, but it does not remove the need to calculate the legal and practical load for the destination market.

The X3000 extended flat-roof cab specification includes a four-point hydraulic suspension, hydraulic main seat, automatic climate control, power windows, multifunction steering wheel, daytime running lights and a 180 Ah maintenance-free battery. For export orders, cab language, warning labels, tool kit and requested safety equipment should be confirmed on the final checklist.

What buyers should send before requesting a quotation

• The material to be collected: wastewater, septic waste, sludge or another medium.
• Estimated solids content, particle size and whether sand, fiber or corrosive material may be present.
• Maximum vertical suction depth and horizontal distance from the truck to the collection point.
• Preferred discharge method, hose and coupling requirements, and site access around the rear cover.
• Road surface, gradients, narrow access points and expected loaded travel distance.
• Destination country and port, required quantity, steering position and local completed-vehicle limits.
• Any required inspection, documentation, paint, markings or spare-parts package.

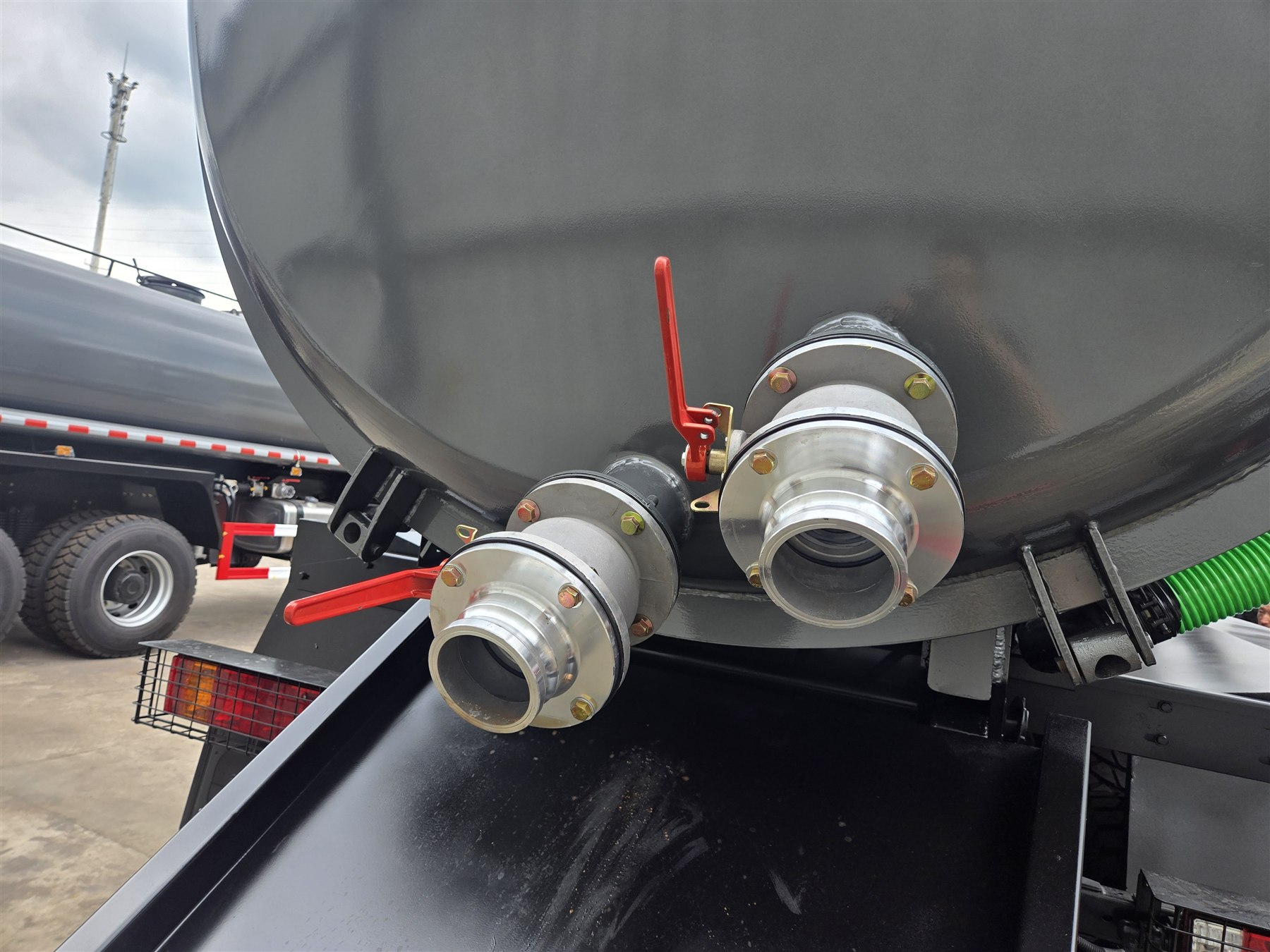

Rear equipment detail: ball-valve outlets, couplings and suction-hose connection area. / 后部细节：球阀出口、快速接头及吸污管连接区域。

这台 X3000 6x6 20方吸污车适合哪些作业

该车采用陕汽 X3000 6x6 底盘和 20 立方米真空吸污罐，可根据实际工况用于市政管网维护、化粪池清掏、施工现场污水收集、工业污泥转运，以及需要通过非铺装道路或复杂进出道路的服务项目。6x6 驱动有助于应对更复杂的路面条件，但采购前仍应说明坡度、路面承载、转弯空间、吸污点与排放点之间的距离。

吸污车不能只按罐体容积选型。介质的固液比例、黏度、吸程、水平管路距离、排放方式和每天的作业循环都会影响最终配置。尤其是泵的能力与吸污深度，现有资料没有给出明确性能数据，因此必须在报价和生产前单独确认。

吸污车和清洗吸污联合车有什么区别

本页车辆是真空吸污车，主要通过真空系统收集和转运污水、化粪池污物或适用污泥。现有配置没有列出高压水泵、高压卷盘或独立清水舱，因此不能把它写成清洗吸污联合车。

如果项目需要先用高压水疏通或冲洗管道，再进行抽吸，应在询价时明确提出。联合清洗吸污上装会改变清水舱与污水舱设计、泵组、管路、载荷分配和操作系统，必须单独设计并确认报价。

20方罐体与吸污系统配置说明

资料注明罐体采用 Q235 碳钢，罐体厚度 6 mm、封头厚度 8 mm，并配双真空油泵、防溢阀和视粪管。罐体可举升，后盖液压开启，尾部设置一个 150 mm 球阀出口，同时配置 10 m 吸污管和操作平台。实车照片中的后部接口、红色手柄阀门、绿色吸污管和圆柱形罐体与车辆用途相符。

这些数据是本次参考配置，不代表所有订单都必须完全相同。不同介质可能需要不同的泵、管路、阀门、罐体防护或清洗方案；目的国对整车尺寸、轴荷和允许总质量的要求也可能不同。最终生产配置应以双方确认的技术协议和图纸为准。

为什么要把底盘、罐体和作业条件一起确认

20 方罐体装满后，整车载荷和重心会明显变化，因此必须一起核对底盘承载、前后轴荷、罐体安装、副车架、轮胎和目的国法规。参考底盘配备 9.5 吨前轴、16 吨汉德双级后桥、前后多片簧和 13R22.5 轮胎。6x6 驱动适合对通过性有要求的项目，但并不等于车辆可以在任何软地或满载条件下行驶，实际工况仍需评估。

资料中的 X3000 加长平顶驾驶室配置包括四点液压悬置、液压主座椅、自动恒温空调、电动车窗、多功能方向盘、日间行车灯和 180Ah 免维护蓄电池。出口订单还应确认驾驶室标识语言、随车工具、安全配置及目的国要求。

询价前建议提供的信息

• 需要抽吸的介质：生活污水、化粪池污物、污泥或其他物料。
• 固体含量、颗粒大小，以及是否含砂石、纤维或腐蚀性介质。
• 最大垂直吸程、水平作业距离和期望的装满时间。
• 排放方式、软管与接头要求，以及后盖周围的操作空间。
• 道路类型、坡度、狭窄通道和车辆满载后的行驶距离。
• 目的国家、目的港、采购数量、当地轴荷与整车限制。
• 验车、文件、颜色、标识和易损备件需求。
